Ditting 1403 Shop Grinder


Title: KR: Manual bag clamp (with bag shaking unit)

KR: Manual bag clamp (with bag shaking unit)
KR: Manual bag clamp (with bag shaking unit)
KFA: Automatic bag clamp (no bag shaking unit)

Product Description

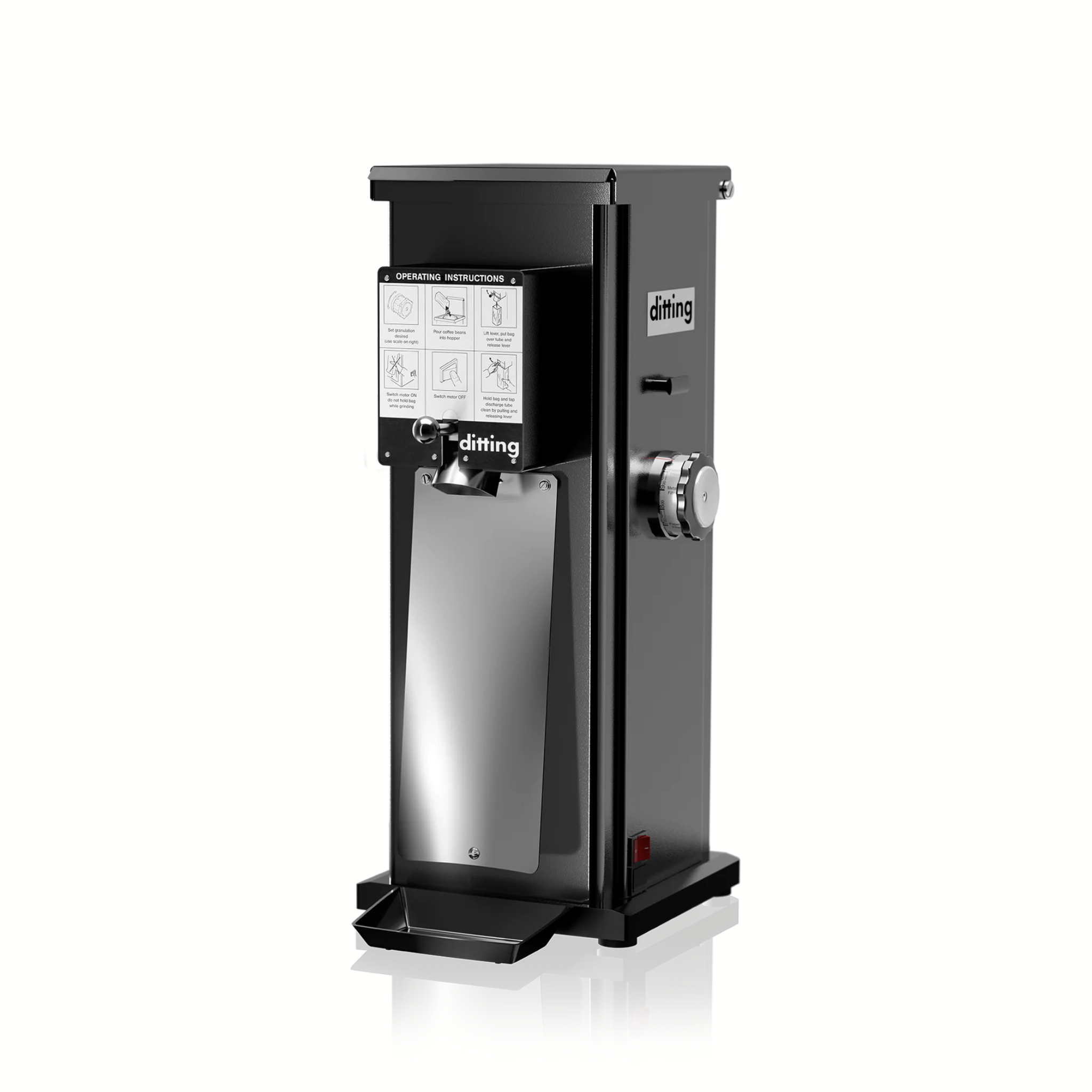

The Ditting 1403 impresses with its remarkable grinding speed, robust performance, and substantial daily capacity. It stands as the perfect answer for bustling coffee shops and roasteries with heavy workloads. Highlighted by specially crafted 140mm burrs, it delivers exceptional grinding capacity across all adjustment levels. These steel burrs are highly resistant to wear, ensuring consistent grinding that preserves the aroma of the coffee. The stepless grind adjustment provides precise control, while the minimal coffee residue is left inside the slide, thanks to the manual knocker. Additionally, a bag-shaking device ensures optimal bag filling, making it incredibly easy to maintain and clean.

Special Equipment

  • Grind adjustment extension


  • 140 mm burrs for all grind adjustment steps
  • Wear-resistant steel burrs
  • Aromasaving consistent grinding
  • Stepless grind adjustment
  • Minimal retention of coffee residues left inside
  • Bag shaking device for filling the coffee bags
  • Very easy to maintain and clean

* Depends on the grinding goods and the chosen degree of fineness. All measured values under laboratory conditions. Other electric specifications are available on request. Subject to change without prior notice.


Technical Specifications

Voltage | Frequency | Phase
  • 380-415 V // 50/60 Hz // 3~
  • 200-240 V // 50/60 Hz // 3~
Revolutions per minute
1400 rpm (50 Hz)
Burr diameter 140 mm
Burr material Special steel
Burr grind life (median setting) ca. 10-15 tons
Grinding capacity* (medium) 2200 g/min
Bean hopper capacity approx.1100 g
Nominal power 1700-2000 W
Dimensions (w x h x d) 260 x 640 x 340 mm
Packing Dimensions (w x h x d) 330 x 730 x 400 mm
Net weight 38 kg
Shipping weight 40 kg
Listings CE-conform, CB, UL, NSF, Additional on request
